Blast Debris Barriers

Select shade securing method:

Select door protection method:

Select door style:

Select curtain type:

Protection solutions for commercial or residential applications, resistant to blast debris of any kind

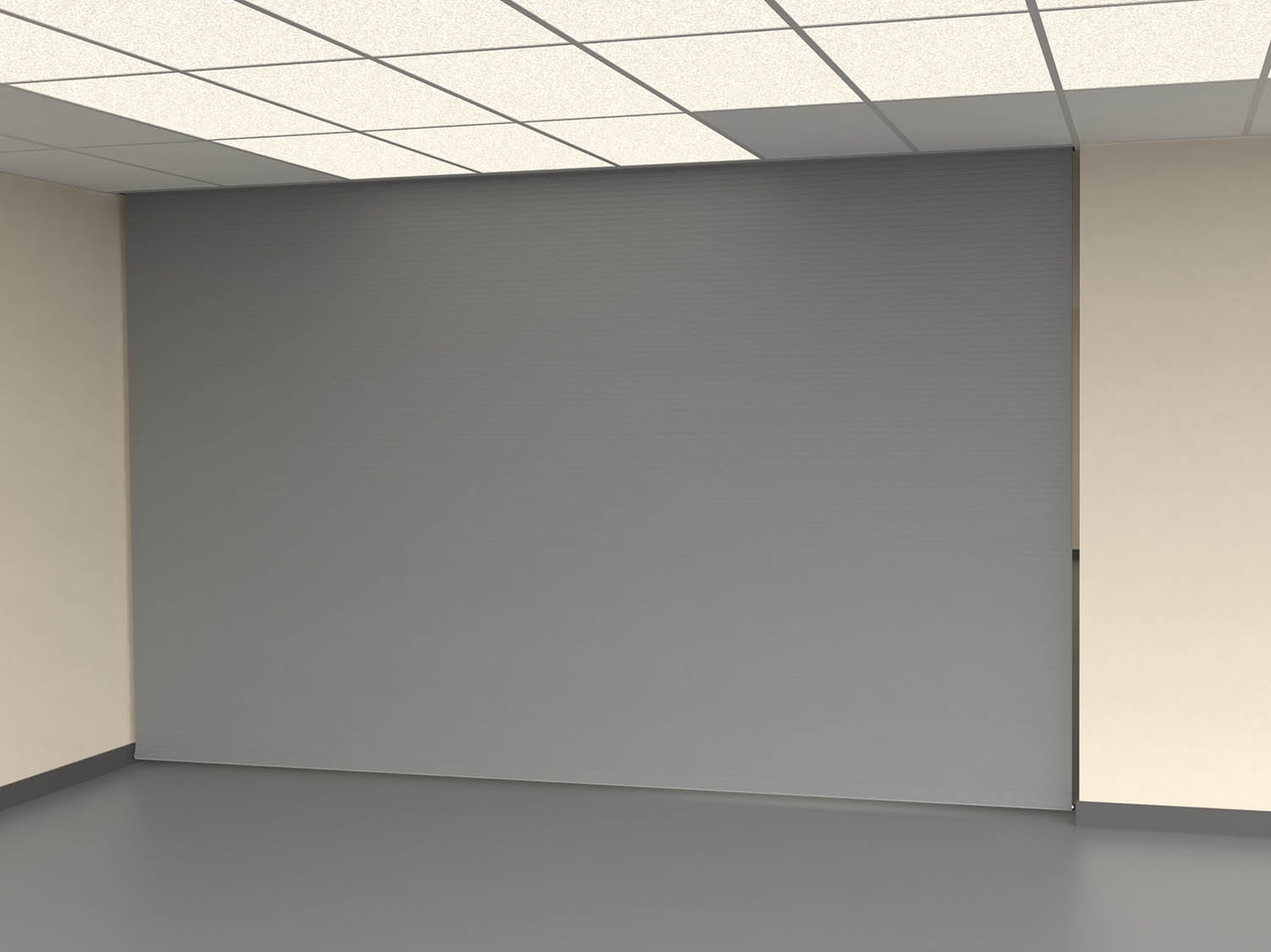

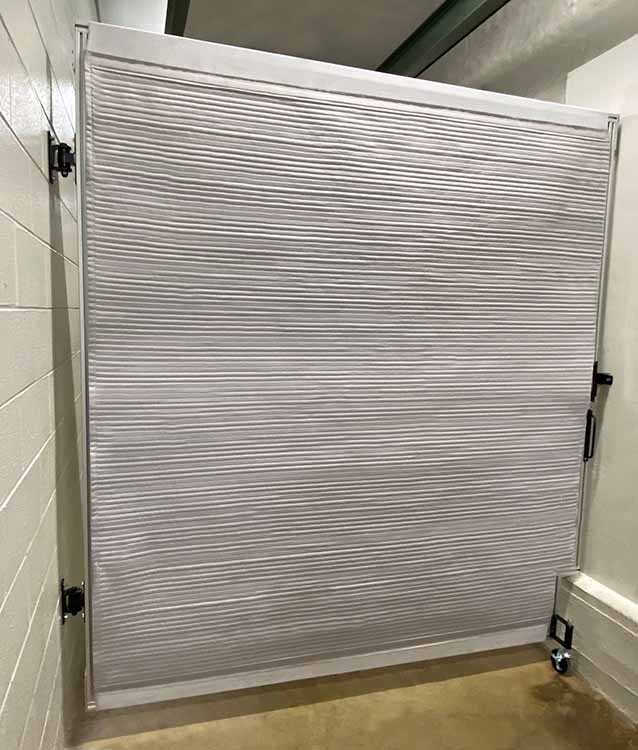

Wall or hallway coverings for blast debris protection.

Designed for industrial environments or test purposes, to provide protection to occupants or equipment from exploding fragment dangers.

Available as certified to UL752 Level 3 or Level 2 protection.
Completely customizable for size and shape, up to 96 in. x 96 in., some larger sizes can be accommodated in certain circumstances.
Cover materials can be customized for additional protection, water-proofing, or chemical resistance.
Options for motorized deployment and retraction.

PART

BBP752-Level 3-BX and BBP752-Level 2-BX

US Patent
11,585,640 B1
12,078,456 B1

Bullet-resistant protection that deploys and retracts similar to conventional window shades

Shades deploy from above the window frame either by manual hand crank or a motorized system.
The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
This significantly reduces the stress on the entire system, including the mountings to the walls and framing.
For added stability on smaller windows/doors, outdoor use, and recommended applications, two types of retention devices can secure the bottom of the fabric:
Cable Guide: As the shield lowers into positions, the hem bar rides along cables attached to the side of the window, providing added resistance to movement as bullets impact.
Locking Hem Bar: When lowered into position, the hem bar locks into mounts that sit below the window, holding the bottom of the shade securely into place as the bullets impact.

In ceiling

Soffit integration

Outside window frame

With a secondary cosmetic shade

Bullet-resistant protection that deploys and retracts similar to conventional shade over a window

Door shields deploy from above the door frame either by manual hand crank or a motorized system.
The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
This significantly reduces the stress on the entire system, including the mountings to the walls and framing.
For added stability on smaller doors, outdoor use, and recommended applications, cable guided retention can secure the bottom of the fabric in place. As the shield lowers into positions, the hem bar rides along cables attached to the side of the door, providing added resistance to movement as bullets impact.

In ceiling

Soffit integration

Outside door frame

Must mount to structural support material/studs (wall anchors in drywall are not permissible).
ICC-ES-2236 , ISO14585 screws (or similar standard) required.
Roll good brackets mounts with four screws per bracket side:
Wood studs: ¼” timber screws, 3” length.
Wood studs: ¼” timber screws, 3” length.
Steel Studs: #14 self-tapping screws, 1½” length.
Masonry, brick, concrete: ¼” anchor screws, 2¾” length.

Dimensions shown are typical and may vary depending on configuration choices.

Must mount to structural support material/studs (wall anchors in drywall are not permissible).
ICC-ES-2236 , ISO14585 screws (or similar standard) required.
Grommet and Pocket brackets mounts with two screws per bracket side:
Wood studs: ¼” timber screws, 3” length.
Steel Studs: #14 self-tapping screws, 1½” length.
Masonry, brick, concrete: ¼” anchor screws, 2¾” length.
