Bullet-resistant fixed panel door shielding, accommodations for door lites

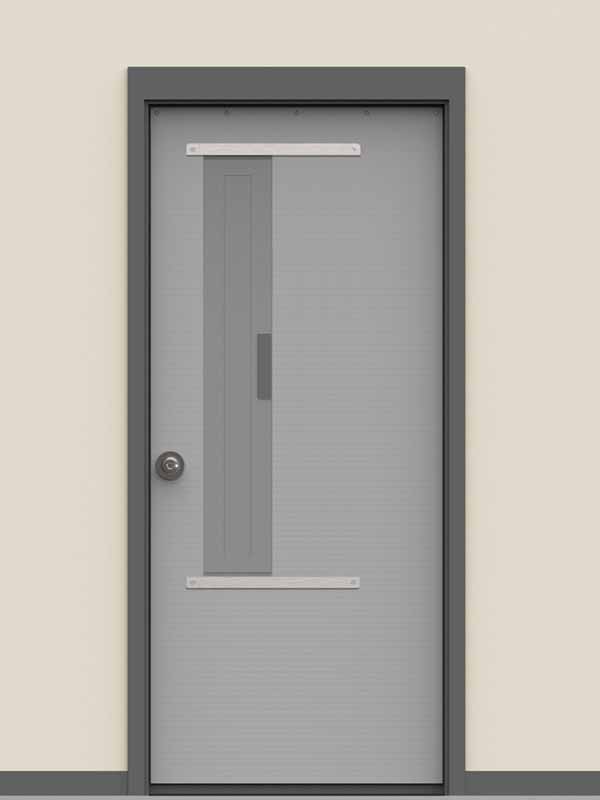

Fixed Panel Door Shield with Sliding Door Lite Kit

Select shade securing method:

Select door protection method:

Select door style:

Bullet-resistant fixed panel door shielding, accommodations for door lites

Protect your home, business, school, or place of worship with bullet-resistant door shields. This kit allows you to convert any existing door to have bullet-resistance. The door shield mounts permanently to the door itself, always ready to provide protection. No need to replace the door or even upgrade the hinges for the additional weight.

  • Available as certified to UL752 Level 3 or Level 2 protection.
  • Customizable to match your décor with custom colors, print patterns, or designer fabrics.

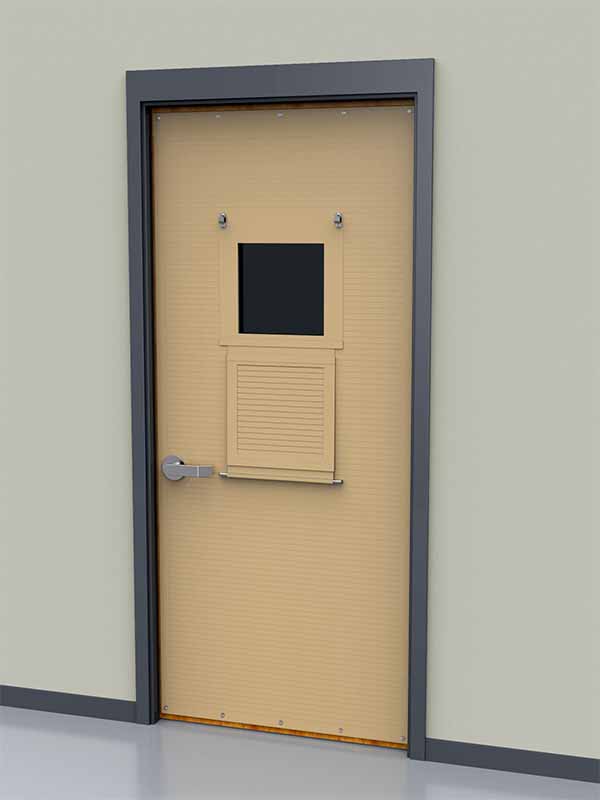

  • Allows for windows in the door slab.
  • Variants for knob, lever, or push bar door closures.
  • Easy installation - in 15 minutes or less.

Handgun protection superior to bullet-resistant fiberglass:

  • Lightweight
  • Lower cost
  • Maintains ADA compliance
  • No permits and engineering sign-off required to install

Bullet-resistant fixed panel door shielding, accommodations for door lites

PART

PART BBP752-L3-DPS and BBP752-L2-DPS

Unlike the roll-down shade and door covers, this door shield is mounted directly to the door.

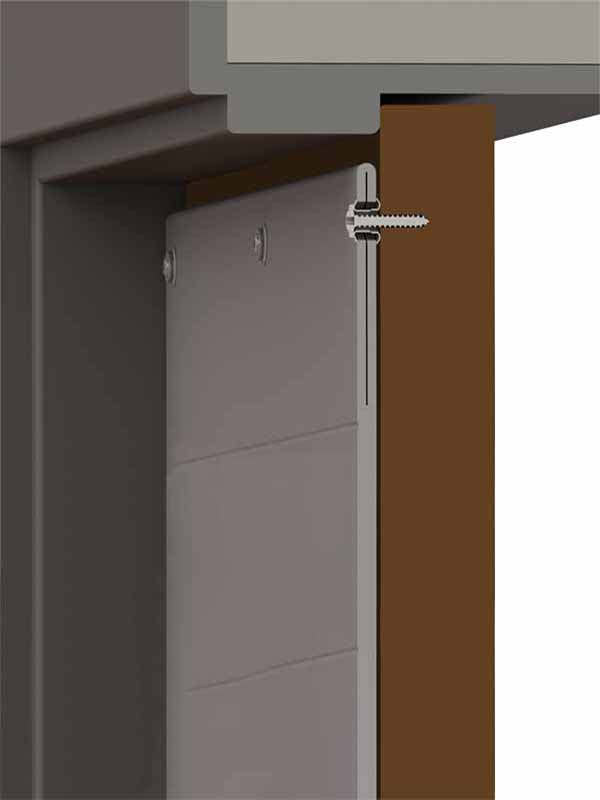

For solid core wood doors, there is only a row of wood screws to drive into the top of the door.

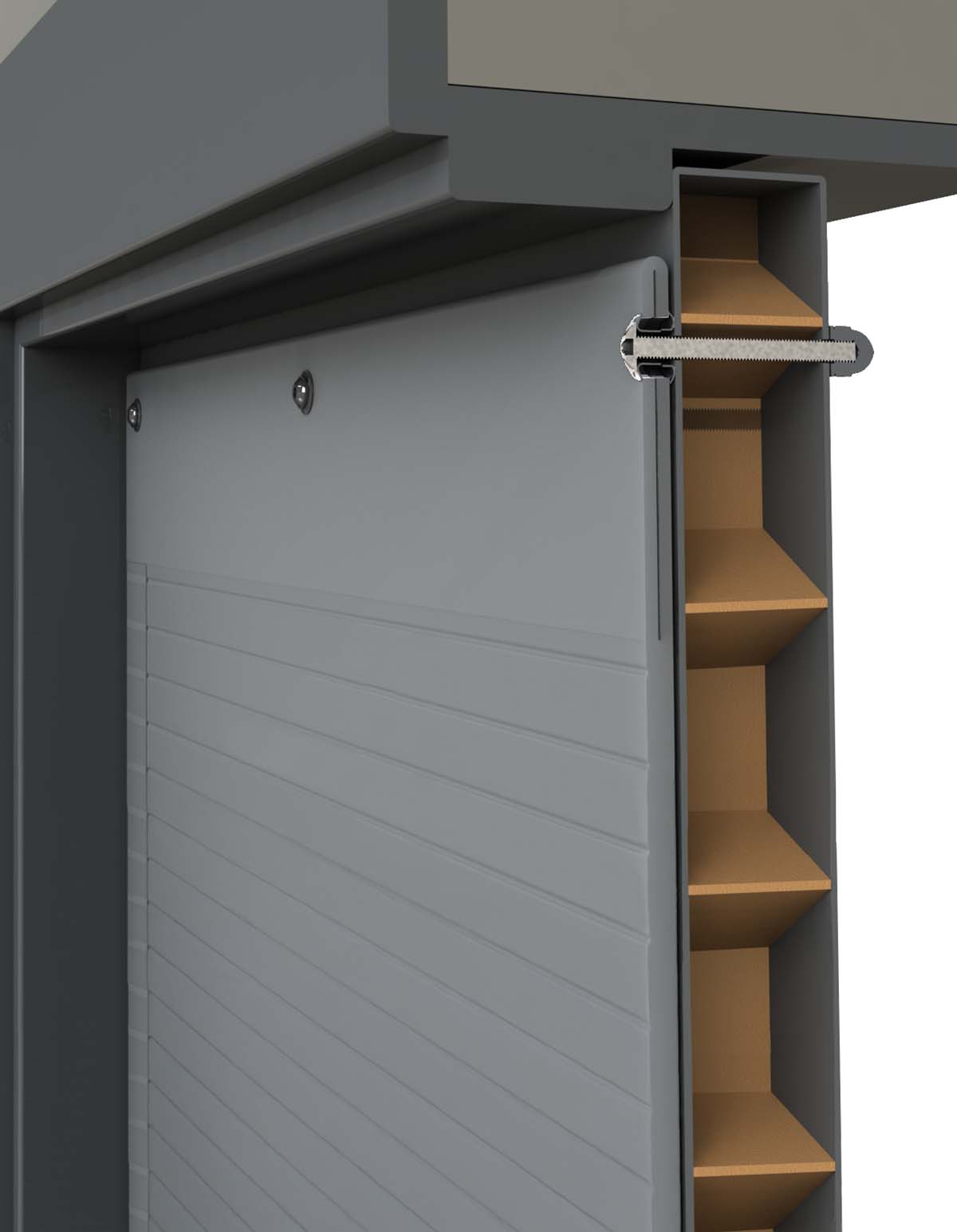

For hollow core wood or metal doors, a row of bolts is used to secure the door shield.

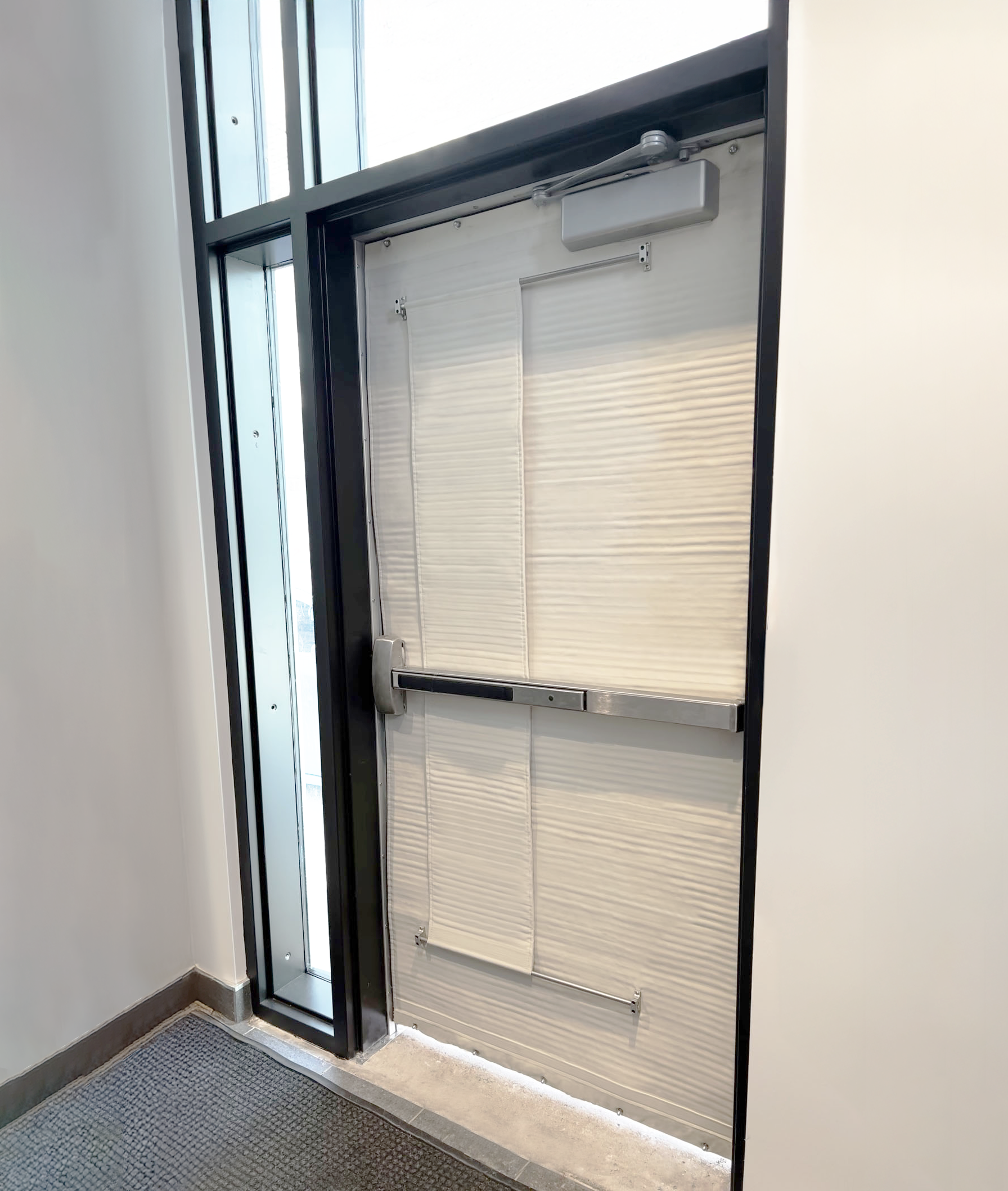

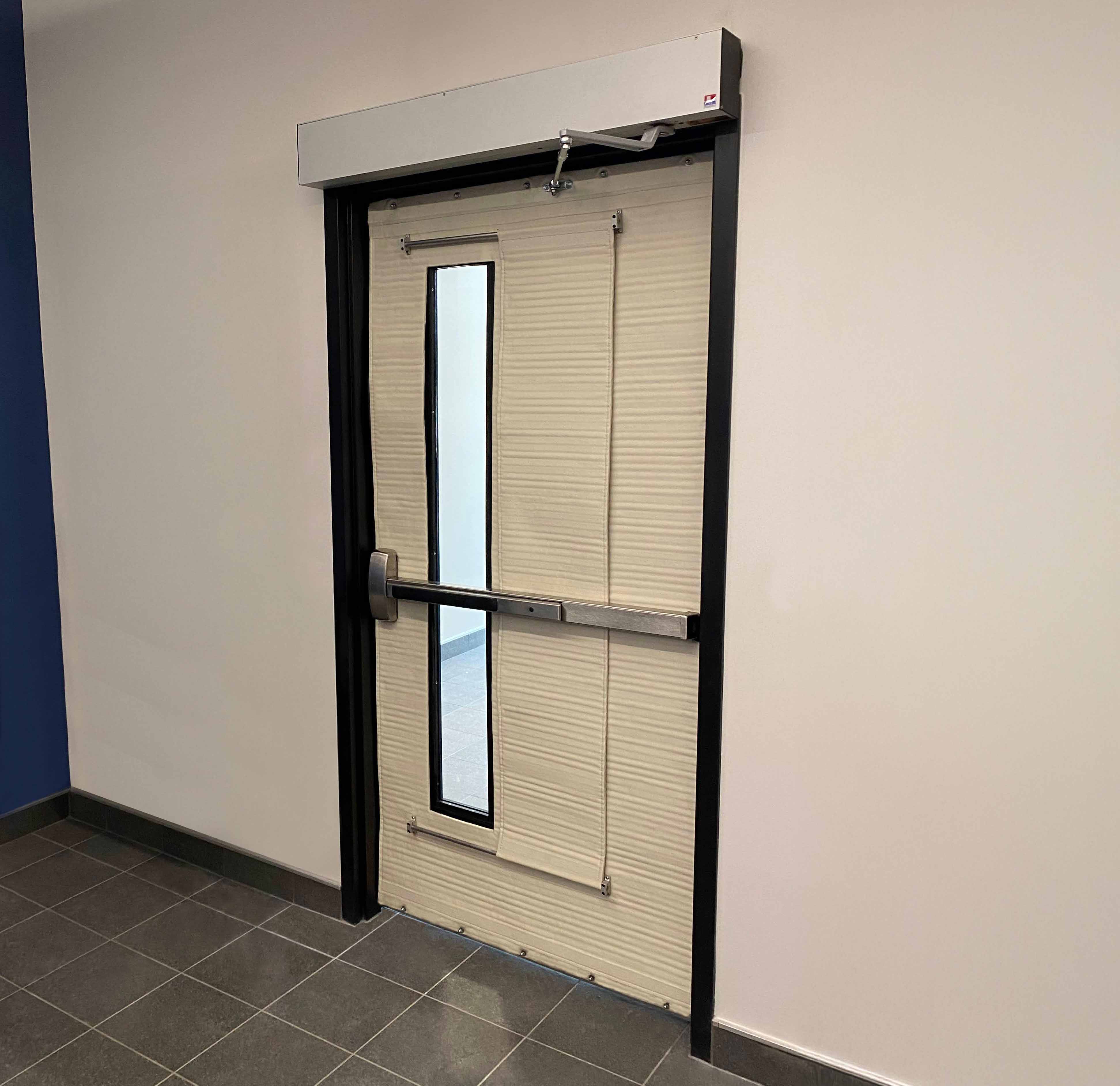

For doors with push bars, the panel is split into two pieces on the push bar side, and a third panel is mounted in the zone of the push bar on the reverse side.

See Installation Instructions
US Patent
11,585,640 B1
12,078,456 B1

How it works

Bullet-resistant protection that deploys and retracts similar to conventional window shades

  • Shades deploy from above the window frame either by manual hand crank or a motorized system.
  • The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
  • The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
    This significantly reduces the stress on the entire system, including the mountings to the walls and framing.

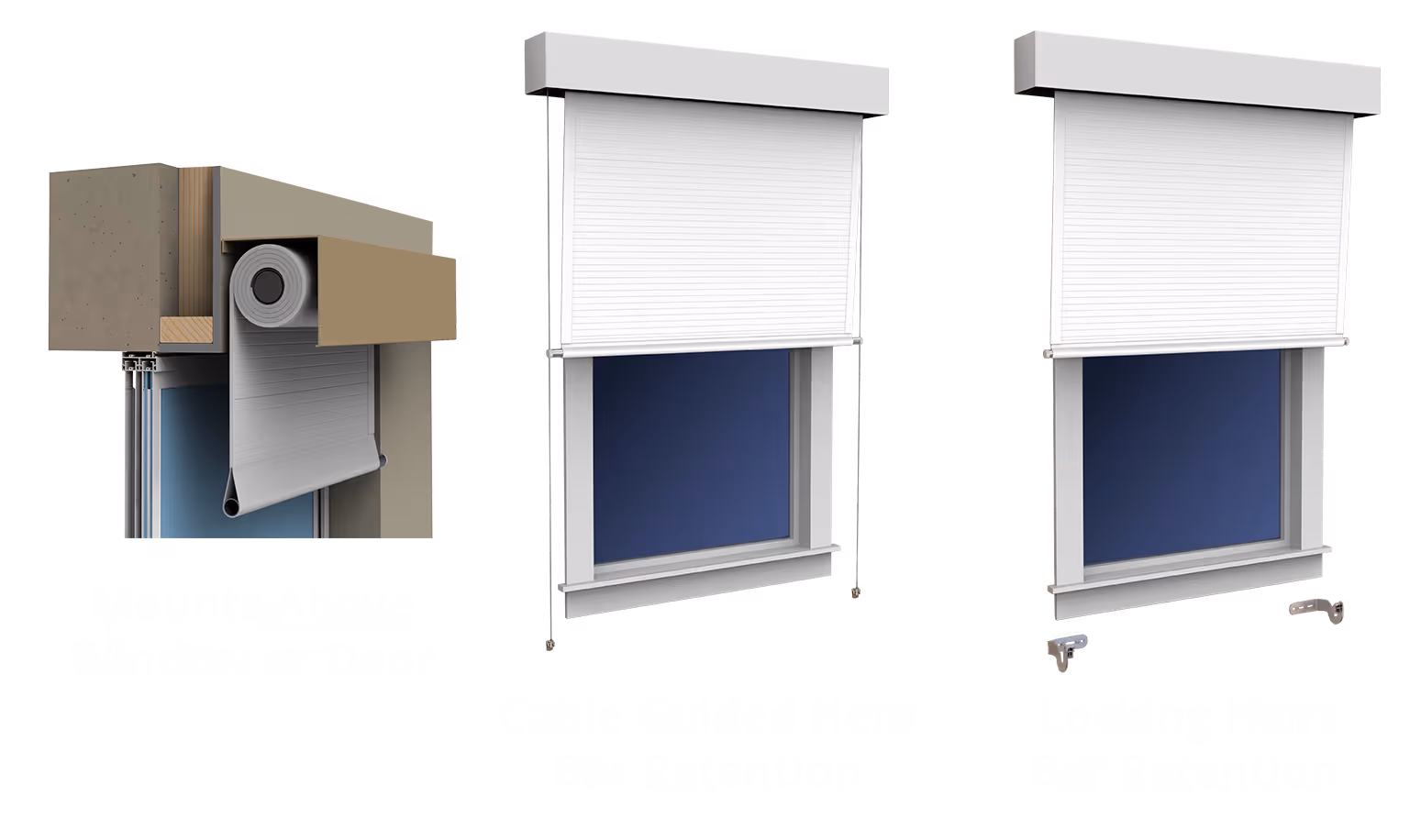

  • For added stability on smaller windows/doors, outdoor use, and recommended applications, two types of retention devices can secure the bottom of the fabric:
  • Cable Guide: As the shield lowers into positions, the hem bar rides along cables attached to the side of the window, providing added resistance to movement as bullets impact.
  • Locking Hem Bar: When lowered into position, the hem bar locks into mounts that sit below the window, holding the bottom of the shade securely into place as the bullets impact.

Installation Customization Available

In ceiling
Soffit integration
Outside window frame
With a secondary cosmetic shade
How our bulletproof door shields work

How it works

Bullet-resistant protection that deploys and retracts similar to conventional shade over a window

  • Door shields deploy from above the door frame either by manual hand crank or a motorized system.
  • The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
  • The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
    This significantly reduces the stress on the entire system, including the mountings to the walls and framing.
  • For added stability on smaller doors, outdoor use, and recommended applications, cable guided retention can secure the bottom of the fabric in place. As the shield lowers into positions, the hem bar rides along cables attached to the side of the door, providing added resistance to movement as bullets impact.

Installation Customization Available

In ceiling
Soffit integration
Outside door frame

Size and Weight Parameters

Bulletproof door shielding sizing

Drive Options

Bulletproof protection drive options

Enclosure Options

Bulletproof protection fascia options

Mounting

  • Must mount to structural support material/studs (wall anchors in drywall are not permissible).
  • ICC-ES-2236 , ISO14585 screws (or similar standard) required.
  • Roll good brackets mounts with four screws per bracket side:
  • Wood studs:  ¼” timber screws, 3” length.
  • Wood studs:  ¼” timber screws, 3” length.
  • Steel Studs: #14 self-tapping screws, 1½” length.
  • Masonry, brick, concrete:  ¼” anchor screws, 2¾” length.

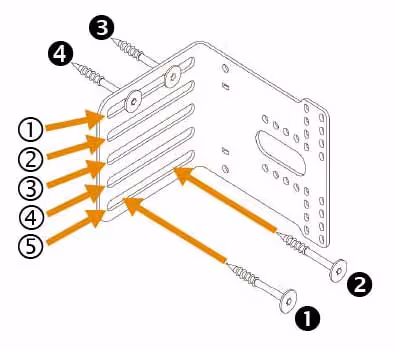

Bulletproof window shade wall bracket
Dimensions shown are typical and may vary depending on configuration choices.

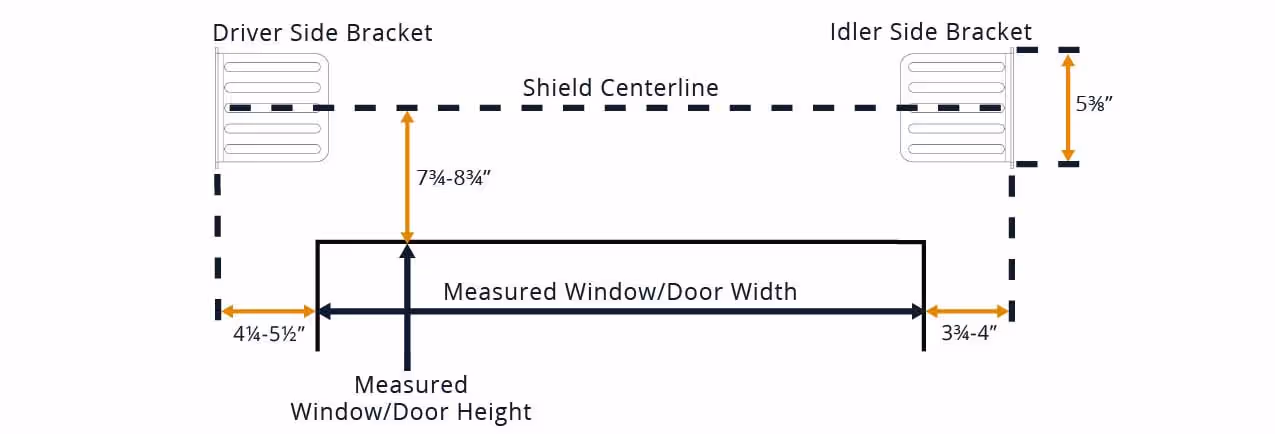

Bulletproof window shade mounting detail
  • Must mount to structural support material/studs (wall anchors in drywall are not permissible).
  • ICC-ES-2236 , ISO14585 screws (or similar standard) required.
  • Grommet and Pocket brackets mounts with two screws per bracket side:
  • Wood studs:  ¼” timber screws, 3” length.
  • Steel Studs: #14 self-tapping screws, 1½” length.
  • Masonry, brick, concrete:  ¼” anchor screws, 2¾” length.
