Bullet-Resistant Window Shades with Locking Hem Bar

Select shade securing method:

Select door protection method:

Select door style:

Select curtain type:

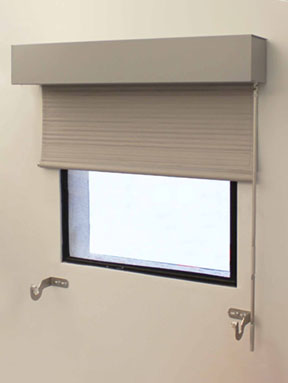

Motorized or manual drive bullet-resistant window shades with locking hem bars

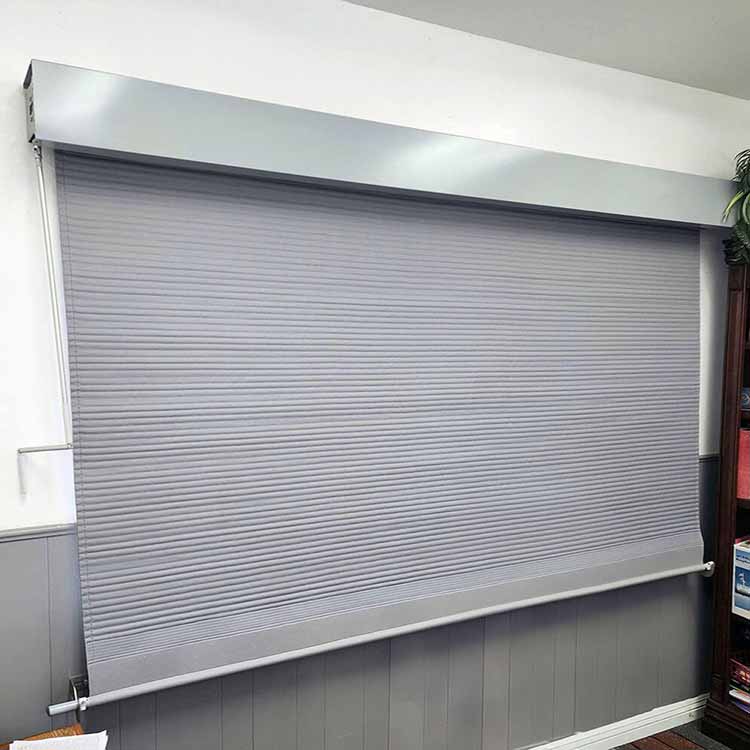

Protect your home or business with bullet-resistant shades, similar in look and function to conventional window coverings.

Motorized version uses either Somfy or RollEase motors.
Manual version is actuated with a hand crank or spring roller.
Available as certified to UL752 Level 3 or Level 2 protection.
Customizable to match your décor with custom colors, print patterns, or designer fabric.
Easy installation - in 30 minutes or less.

Handgun protection superior to bullet-resistant glass:

Lightweight
Lower cost
Retain egress windows
No permits and engineering sign-off required to install

Motorized or manual drive bullet-resistant window shades with locking hem bars

PART

BBP752-Level 3-WL and BBP752-Level 2-WL

Due to the large size of the window shade, no hem bar retention system is necessary; however, the impact of a bullet may cause the bottom of the shade to raise up a few inches. If this is a concern, consider the option that has the hem bar retained with locks.

Standard construction allows for sizes starting at:

36 in. wide, up to a width of 96 in.
Window height of up to 96 in.

Window sizes outside of these dimensions can be accomodated with certain considerations.

See Installation Instructions

US Patent
11,585,640 B1
12,078,456 B1

Download Product Order Form

Product Data Sheet Instructions for Taking Measurements for Quoting Sample Installation Instructions Need more information? Contact us

How it works

Bullet-resistant protection that deploys and retracts similar to conventional window shades

Shades deploy from above the window frame either by manual hand crank or a motorized system.
The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
This significantly reduces the stress on the entire system, including the mountings to the walls and framing.
For added stability on smaller windows/doors, outdoor use, and recommended applications, two types of retention devices can secure the bottom of the fabric:
Cable Guide: As the shield lowers into positions, the hem bar rides along cables attached to the side of the window, providing added resistance to movement as bullets impact.

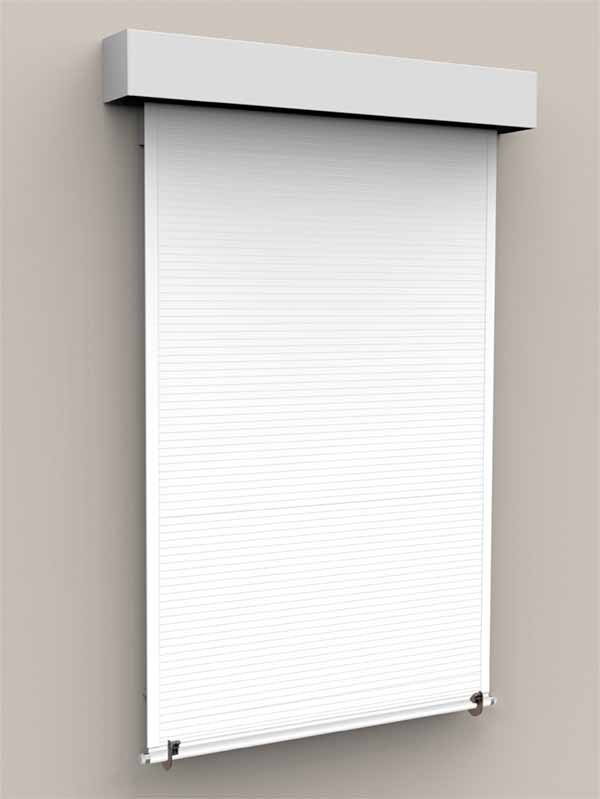

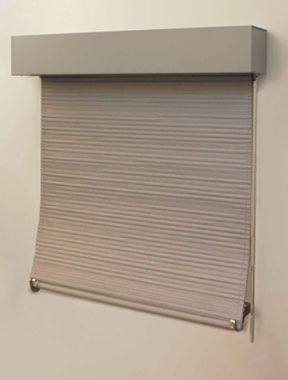

Locking Hem Bar: When lowered into position, the hem bar locks into mounts that sit below the window, holding the bottom of the shade securely into place as the bullets impact.

Installation Customization Available

In ceiling

Soffit integration

Outside window frame

With a secondary cosmetic shade

How it works

Bullet-resistant protection that deploys and retracts similar to conventional shade over a window

Door shields deploy from above the door frame either by manual hand crank or a motorized system.
The motor can be activated with a standard wall switch, wireless remote control, or by connecting to an existing alarm system.
The all-fabric shielding benefits from the patented BBP "energy dissipation solution" that allows the shield to act as though it is catching the bullet rather than simply resisting its impact only with brute strength.
This significantly reduces the stress on the entire system, including the mountings to the walls and framing.
For added stability on smaller doors, outdoor use, and recommended applications, cable guided retention can secure the bottom of the fabric in place. As the shield lowers into positions, the hem bar rides along cables attached to the side of the door, providing added resistance to movement as bullets impact.

Installation Customization Available

In ceiling

Soffit integration

Outside door frame

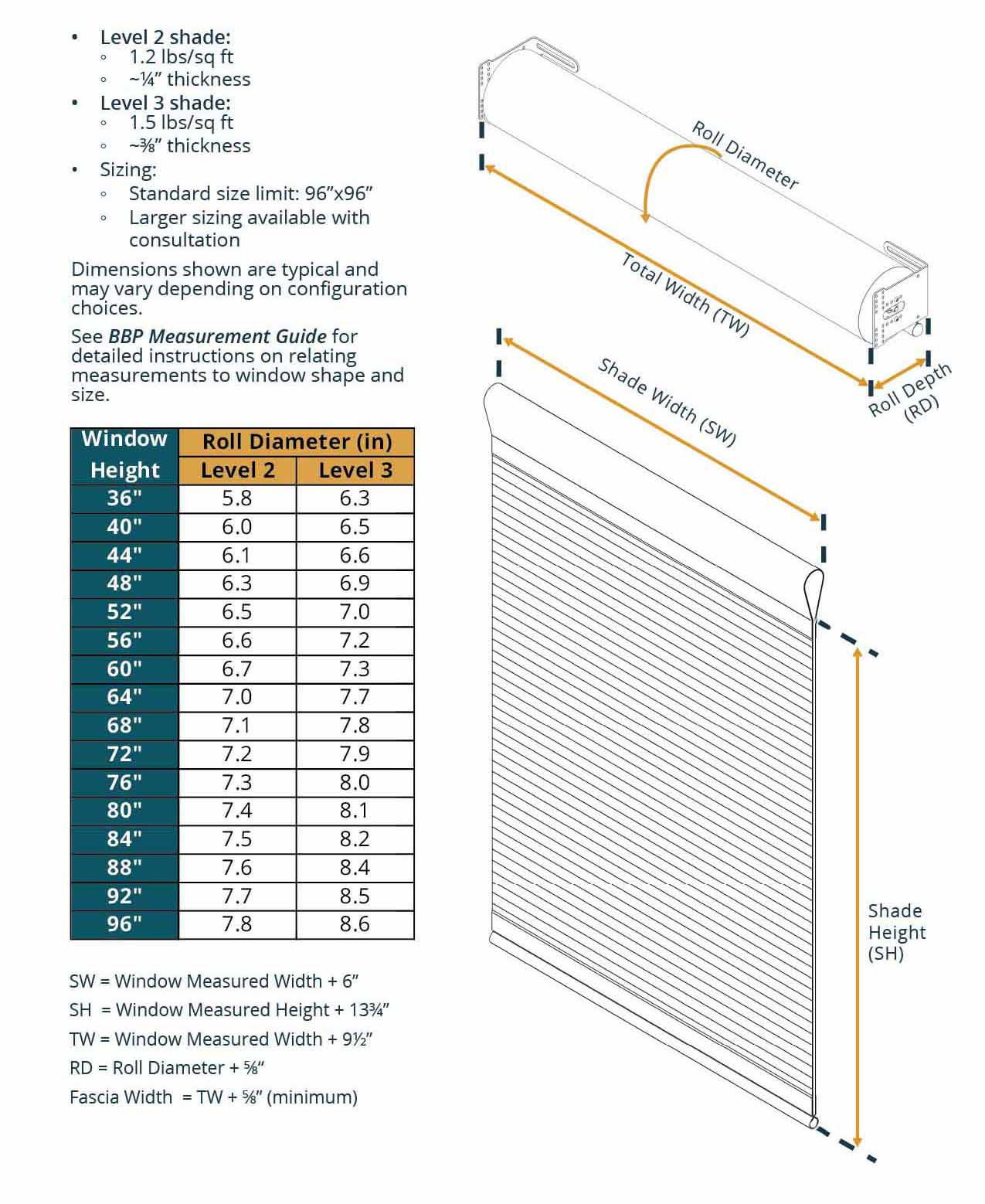

Size and Weight Parameters

Drive Options

Enclosure Options

Mounting

Must mount to structural support material/studs (wall anchors in drywall are not permissible).
ICC-ES-2236 , ISO14585 screws (or similar standard) required.
Roll good brackets mounts with four screws per bracket side:
Wood studs: ¼” timber screws, 3” length.
Wood studs: ¼” timber screws, 3” length.
Steel Studs: #14 self-tapping screws, 1½” length.
Masonry, brick, concrete: ¼” anchor screws, 2¾” length.

Dimensions shown are typical and may vary depending on configuration choices.

Bulletproof window shade mounting detail

Must mount to structural support material/studs (wall anchors in drywall are not permissible).
ICC-ES-2236 , ISO14585 screws (or similar standard) required.
Grommet and Pocket brackets mounts with two screws per bracket side:
Wood studs: ¼” timber screws, 3” length.
Steel Studs: #14 self-tapping screws, 1½” length.
Masonry, brick, concrete: ¼” anchor screws, 2¾” length.
